⚗️ Pascal’s Law

On completion of this lesson, the students will be able to state and demonstrate Pascal’s law and investigate its use in daily life.

🔹 Statement of Pascal’s Law

Pascal’s law states that:
👉 “When pressure is applied at any point to a confined liquid, it is transmitted equally and undiminished in all directions throughout the liquid.”

This means that the pressure exerted on a fluid in a closed container is distributed equally to every part of the liquid and to the walls of the container.

🔹 Demonstration of Pascal’s Law

  • Take a closed vessel filled with water.

  • Make several small holes at the same level in the wall of the vessel.

  • When pressure is applied to the water (for example, by pushing a piston or pressing from the top), water comes out of all holes with the same force and pressure.

This proves that pressure is transmitted equally in all directions.

🔹 Mathematical Expression

If pressure PP is applied to a liquid, then the same pressure is experienced at every point:

P=FAP = \frac{F}{A}

Where,

  • PP = Pressure

  • FF = Force applied

  • AA = Area

🔹 Applications of Pascal’s Law in Daily Life

Pascal’s principle is widely used in hydraulic machines.

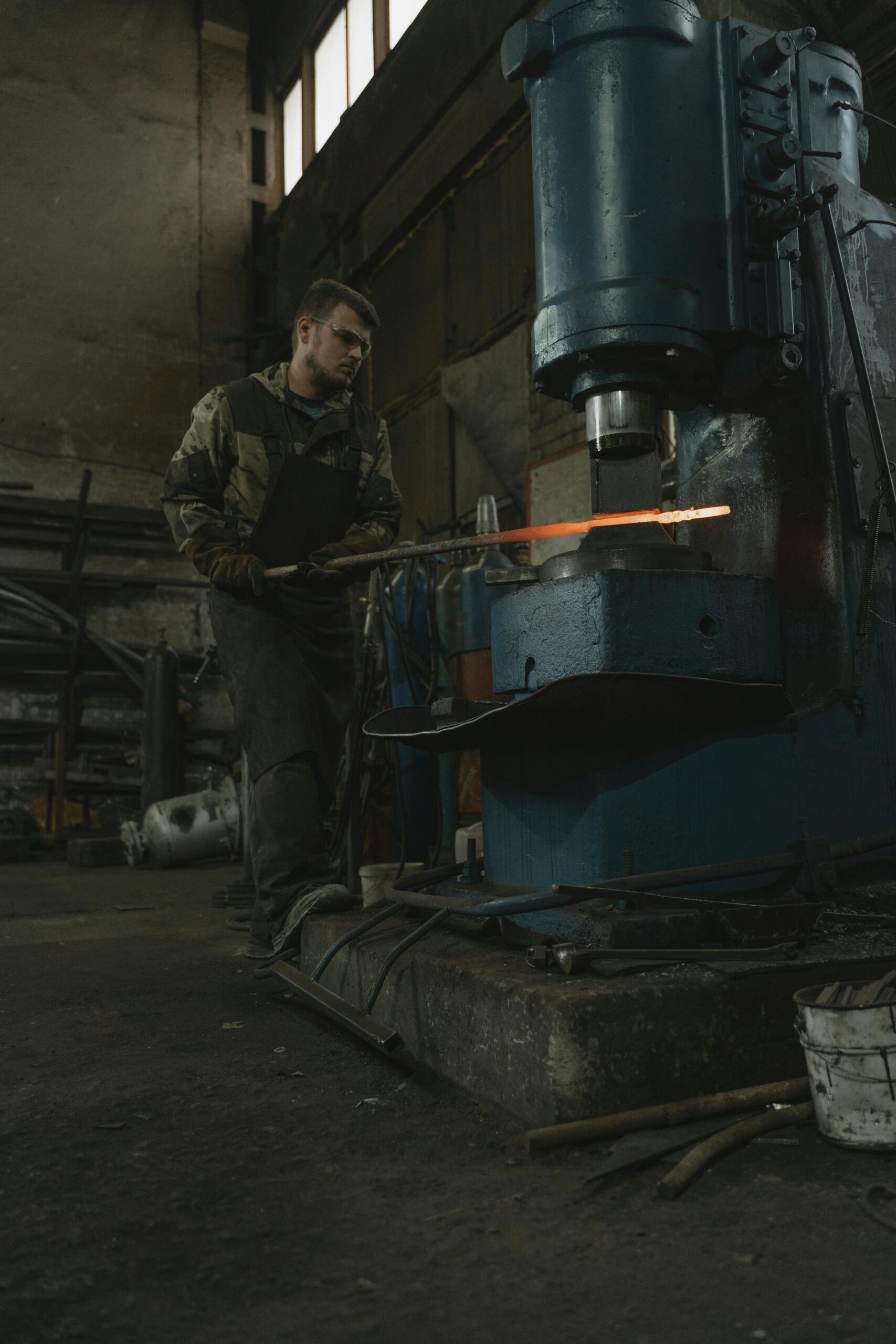

  1. Hydraulic Press – Used to compress cotton, shape metals, and extract oil.

Pressure

  1. Hydraulic Lift – Used in workshops and elevators to lift cars and heavy loads.

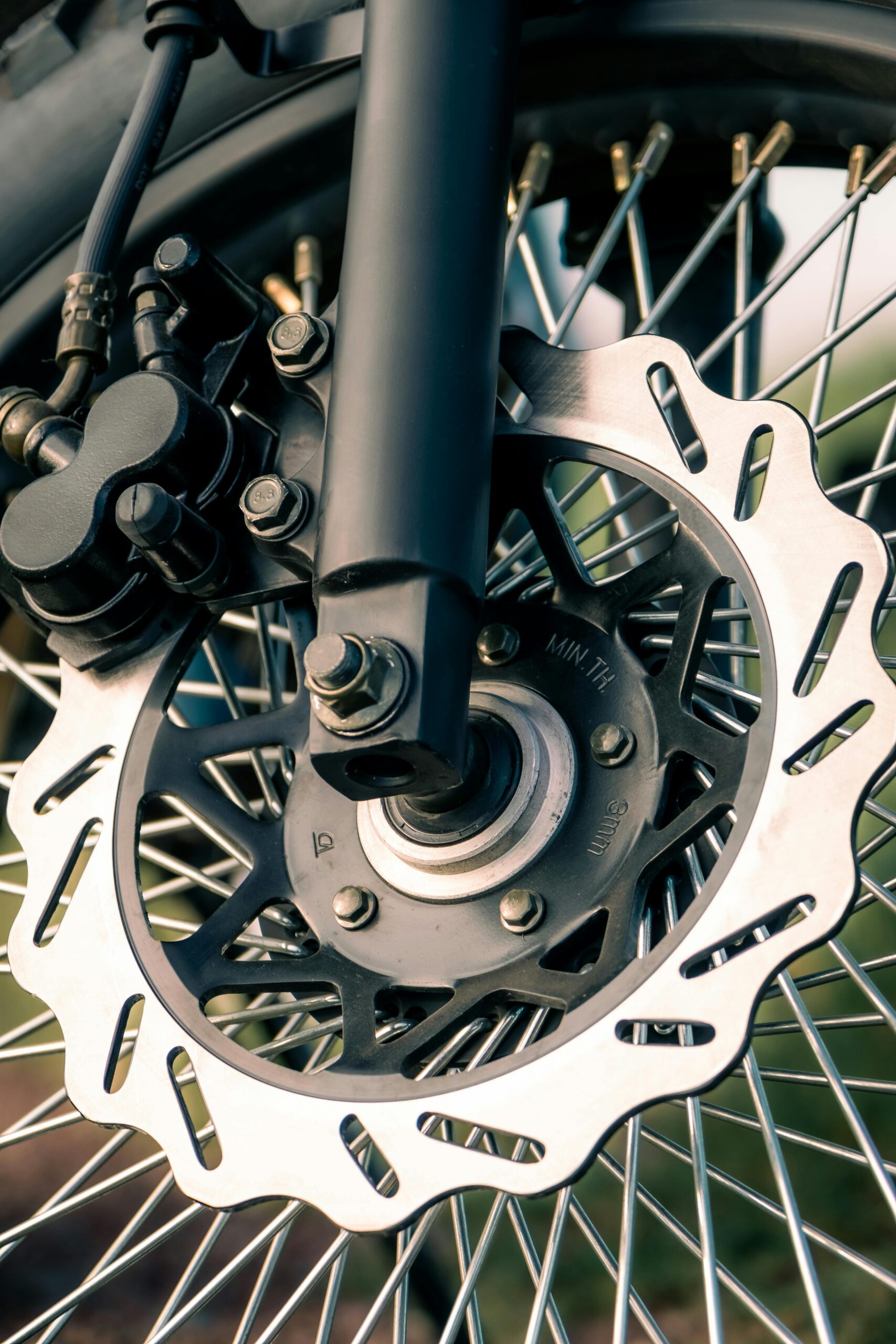

  2. Hydraulic Brake System – Used in vehicles where pressure applied at the brake pedal is transmitted through brake fluid to stop the wheels.

Pressure

  1. Hydraulic Jack – Used for lifting heavy objects like cars during repair.

Pressure

🔹 Example

Suppose a small piston of area A1=0.01 m2 is pressed with a force F1=100 N. The pressure is transmitted to a large piston of area A2=0.5 m2.

P=F1/A1=100/0.01=10000 Pa

Force on the large piston:

F2=P×A2=10000×0.5=5000 N

So, a small force of 100 N can lift a heavy load of 5000 N using Pascal’s principle.

✅ Conclusion

Pascal’s law explains how pressure in liquids behaves and why hydraulic devices are effective. It plays a crucial role in transport, industry, and everyday tools.
